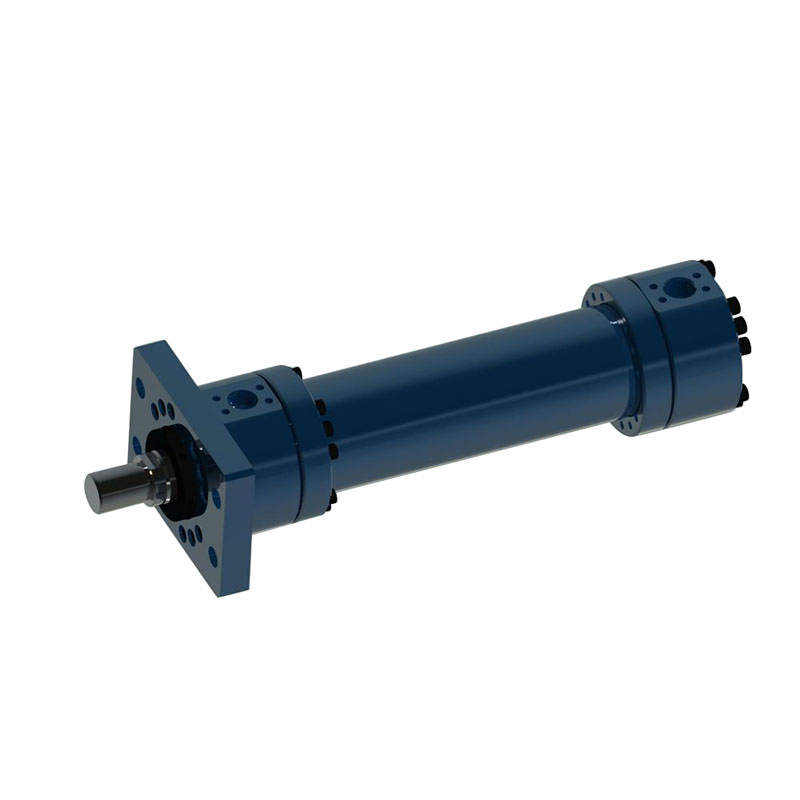

The injection hydraulic cylinder of injection molding machine: controls the opening and closing of the mold and the ejection of the product.

Injection Hydraulic Cylinder of Injection Molding Machine product specifications:

Bore diameter 90mm～220mm

Rod diameter 50mm～140mm

Stroke≤600mm

Thrust: Maximum 760KN

(Bore diameter 220mm/pressure 10MPa)

Accept customer customized models.

Injection hydraulic cylinder of injection molding machine material: cast steel ZG270-500, cast steel ZG310-5, alloy steel 18MnMoNb, 45# steel ingot forging, 42CrMn overall forging.

Injection molding machine ejection hydraulic cylinder oil seal brands: Japan NOK, Parker oil seal, American MPI, Swedish SKF, Austrian polyurethane oil seal.

Product advantages of injection hydraulic cylinder of injection molding machine produced by Qingdao Micro Precision Machinery Co., Ltd.

1. Compact structural design, use of high-strength materials and special heat treatment and welding processes ensure that the cylinder has extremely high fatigue durability life under high pressure and heavy load.

2. Low-friction sealing system design using special materials to meet customer requirements for low starting pressure, low oil film, and fast response.

3. The design has a wide temperature range (-25℃～+120℃), and can provide higher or lower temperature cylinder customization services.

4. Reasonable oil drain hole design can effectively solve the problem of heavy oil film caused by high frequency and fast speed, and avoid "trapped pressure" in the sealing system. At the same time, the accumulated oil can flow back to the tank through the hose, improving anti-pollution ability. high

5. The surface of the piston rod adopts special surface treatment to ensure excellent wear resistance and corrosion resistance of the piston rod.

6. Working pressure, size specifications, installation methods, etc. can be customized according to customer needs.

7. Cylinders of all specifications are designed by professional engineers

8. We use high-quality sealing kits purchased from American MPI, Japanese NOK and Swedish SKF.

9. All materials are processed by skilled workers and advanced CNC lathes

10All hydraulic cylinders are 100% tested before leaving the factory to ensure that each cylinder meets the requirements

11. Hydraulic cylinders are packed in wooden boxes to ensure that the goods reach customers safely

12. products have a one-year warranty and provide lifelong tracking services to solve problems you encounter during use.
