Welded Cylinder Base for Lock Valve

Welded cylinder base for lock valve is one of hydraulic cylinder parts, it's the important part to ensure the safe and stable operation of the system. It is often used in engineering machinery, metallurgical equipment, ships and other occasions that need to accurately control the position of hydraulic actuator or maintain pressure.

Send Inquiry

Product Description

Hydraulic lock valve is a control element used in hydraulic system, which is assembled on this cylinder base. The cylinder base is welded on cylinder first, then lock valve is assembled on the cylinder base through the thread holes.

In hydraulic systems, when it is necessary to maintain the working pressure of the actuator, the hydraulic lock valve prevents oil leakage and ensures stable pressure. For example, in an injection molding machine, the pressure holding process requires the system to maintain a certain pressure, so that the plastic can evenly fill the mold cavity, and the hydraulic locking valve can effectively reduce pressure fluctuations.

Product parameters

Product Name	Welded cylinder base for lock valve
ID Range	90-200mm
Material	High quality carbon steel such as 45 steel or low alloy steel
Devitation	Inner hole H9, outer circle H9, special dimension tolerances can be customized. Others are in accordance with ISO 2768-mK.

GET A QUOTATION NOW

Processing technic:

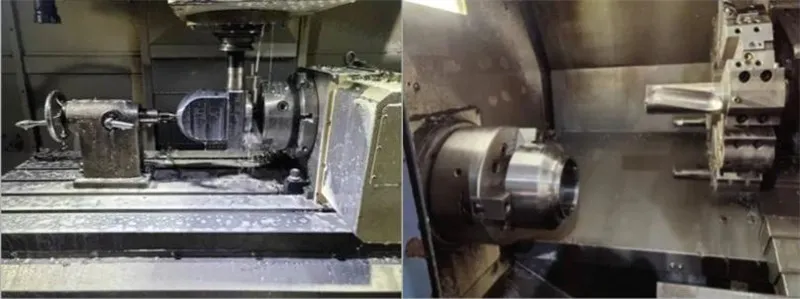

High precision precision four-axis machine tool Process.

Use custom non-standard Tool machining to ensure the valve hole Coaxiality and finish.

Welded Cylinder Base for Lock Valve

The production tools use international first-line brands such as Sandvik Coromant, EMUGE, and Walter.

Welded Cylinder Base for Lock Valve

For processing of special materials specified by the customer, follow the material quality inspection report to ensure that the material meets the requirements specified by the customer.

Welded Cylinder Base for Lock Valve
