T13A Hydraulic Flow Control Valve Block
  • T13A Hydraulic Flow Control Valve BlockT13A Hydraulic Flow Control Valve Block
  • T13A Hydraulic Flow Control Valve BlockT13A Hydraulic Flow Control Valve Block
  • T13A Hydraulic Flow Control Valve BlockT13A Hydraulic Flow Control Valve Block
  • T13A Hydraulic Flow Control Valve BlockT13A Hydraulic Flow Control Valve Block

T13A Hydraulic Flow Control Valve Block

Our high-quality T13A hydraulic flow control valve block's advantages are precisely control the flow of hydraulic systems, precisely control the pressure of the hydraulic system, realize automatic control of hydraulic system and improve the reliability and safety of hydraulic systems.

Send Inquiry

Product Description

T13A hydraulic flow control valve block for high-quality hydraulic systems

Advantages of hydraulic valves

Precisely control the flow of hydraulic systems

Precisely control the pressure of the hydraulic system

Realize automatic control of hydraulic system

Improve the reliability and safety of hydraulic systems

Selection of T13A Hydraulic Flow Control Valve Block materials

Q355D forged sheet, QT500-7, QT400-18, stainless steel 316, aluminum, copper and other materials. We accept customer-specified materials and non-standard customized processing to ensure quality and timely delivery.

T13A Hydraulic Flow Control Valve Block introduction


1: The T13A hydraulic flow control valve block can be processed with a 2-way direct-acting solenoid-operated poppet valve and a directional valve. The design flow rate is: 40L/min. The processing hole type is T13A valve hole. The 2-position 2-way can be equipped with a solenoid valve. After installation, it is a straight valve. Moving type, the valve block valve hole is a poppet valve structure. This valve bore is designed and machined for both normally open and normally closed configurations. The valve hole of the valve block is designed as a poppet valve structure, which is made of nitrile rubber, EPDM, and fluorine rubber. There is no leakage in the valve hole of this valve block.

2: The valve hole of this hydraulic valve block can be processed with a 2-way solenoid-operated slide valve and a directional valve with a flow rate of 45L/min. The 2-position 2-way can be equipped with a solenoid valve. It is a direct-acting, balanced valve structure, and also has both normally open and normally closed functions. kind of structure.

3: The valve hole of this hydraulic valve block is direct-acting, soft-switching, solenoid-operated poppet valve, directional valve design flow: 15L/min. The hydraulic valve block can be processed with a 2-position 2-way solenoid valve, which is a direct-acting type. The poppet valve structure has soft-start characteristics, which can significantly reduce the system impact when the valve is driven.

Technical data of the T13A Hydraulic Flow Control Valve Block

Maximum operational pressure

350 bar

Rated response time

50ms

Maximum leak at 110 SUS (24 cSt)

80cc/min@210brt

Switch frequency

15000 cycles/hr

pass

T13A

Seal kit-Cartridge

Buna;990-413-007

Seal kit-Cartridge

Viton;990-17-006

Force required for a manual emergency operation

33N/100 bar @Port1

Manual emergency operation action stroke

2.5mm

Solenoid coil start voltage

12VCD/24VCD

T13A Hydraulic Flow Control Valve Block introduction

This hydraulic valve block valve hole can set the fixed guide pressure ratio 4.5:1 half interception balance valve.

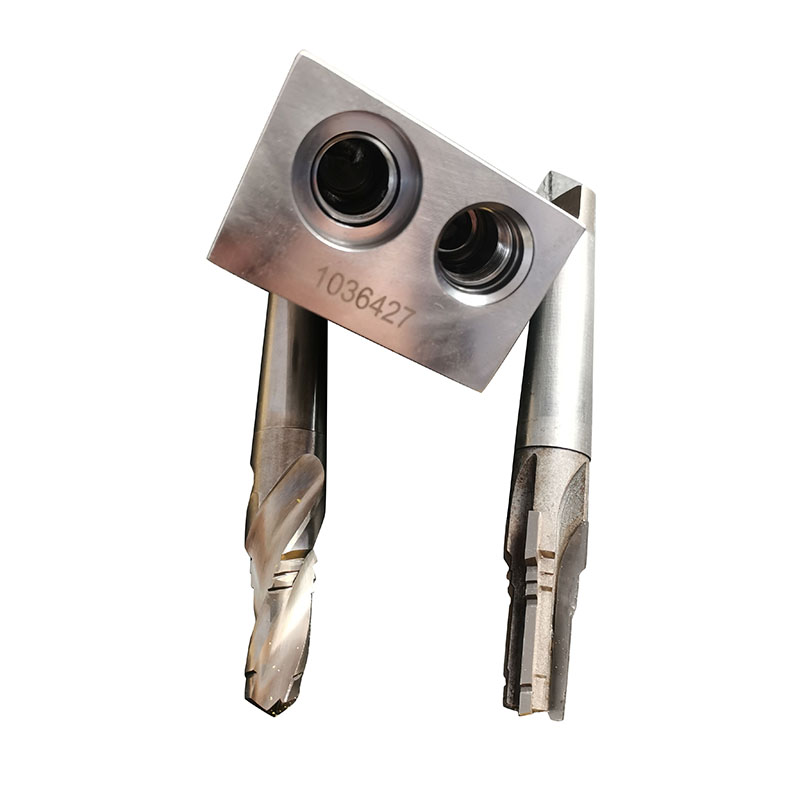

Using high-precision 5-axis CNC equipment processing, custom molding tool processing hydraulic valve block valve hole, to ensure the accuracy of the valve hole, but also to ensure the smoothness of the valve hole, Ra0.8--Ra1.6

Professional cleaning equipment and professional burr removal personnel ensure the cleaning of hydraulic valve blocks and burr handling of cross holes. Ensure that each valve block can achieve 3D shadow detection.
