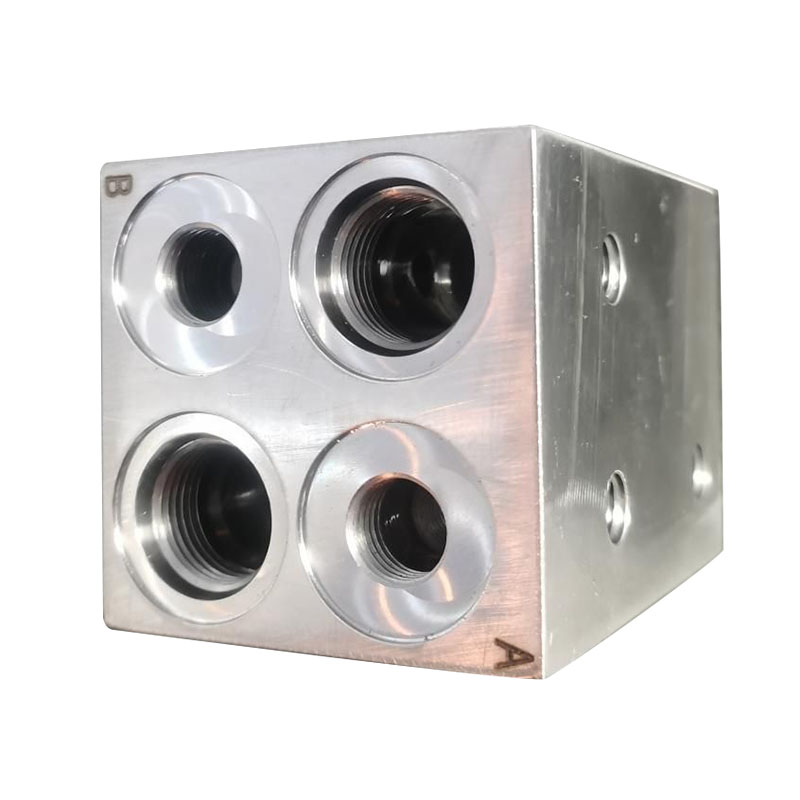

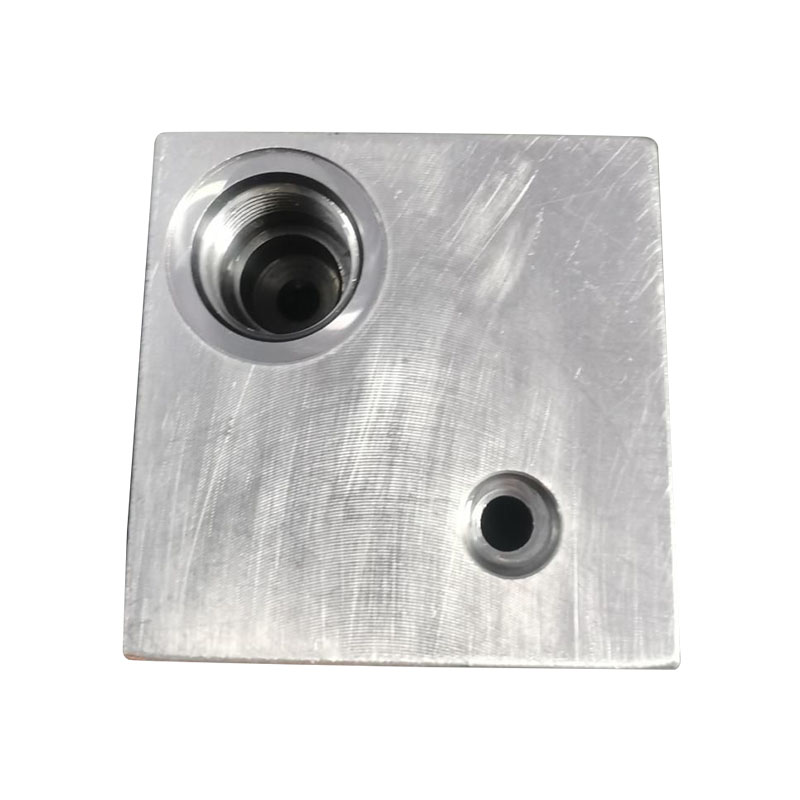

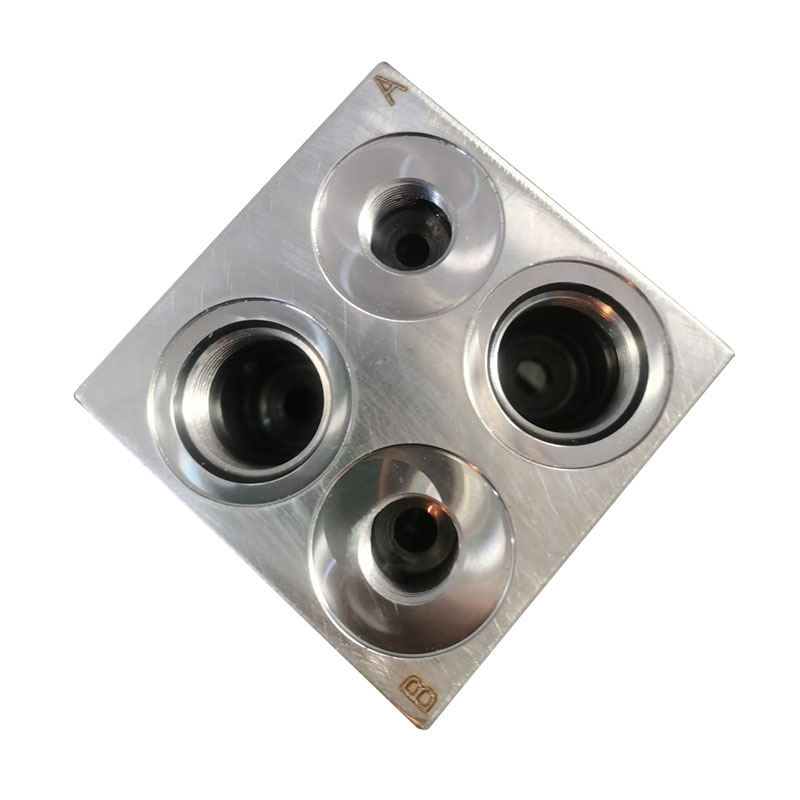

CA-08A-3C Hydraulic Cylinder Balance Valve Block
  • CA-08A-3C Hydraulic Cylinder Balance Valve BlockCA-08A-3C Hydraulic Cylinder Balance Valve Block
  • CA-08A-3C Hydraulic Cylinder Balance Valve BlockCA-08A-3C Hydraulic Cylinder Balance Valve Block
  • CA-08A-3C Hydraulic Cylinder Balance Valve BlockCA-08A-3C Hydraulic Cylinder Balance Valve Block

CA-08A-3C Hydraulic Cylinder Balance Valve Block

CA-08A-3C Hydraulic Cylinder Balance Valve Block material: Q355D forged, 20# steel, GGG50, etc. Each piece is subject to flaw detection testing to prevent oil leakage and oil channeling in the hydraulic valve block.

Send Inquiry

Product Description

CA-08A-3C hydraulic cylinder balance valve block material: Q355D forged, 20# steel, GGG50, etc. Each piece is subject to flaw detection testing to prevent oil leakage and oil channeling in the hydraulic valve block.

CA-08A-3C hydraulic cylinder balance valve block has extremely high cost performance and high quality inspection requirements.

Professional cleaning equipment and professional deburring equipment for the hydraulic cylinder pressure reducing valve block ensure the cleaning of the hydraulic valve block and the deburring of the cross holes. Ensure that each valve block achieves 3D imaging detection. It effectively prevents the existence of iron filings and avoids the unsmooth movement of the hydraulic valve block.

The CA-08A-3C hydraulic cylinder balance valve block is processed with materials specified by customers and non-standard customized processing by customers to ensure quality and timely delivery.


The valve hole of the CA-08A-3C hydraulic cylinder balance valve block adopts cone surface sealing to ensure small leakage. It is also suitable for low-viscosity working media such as emulsion. It has a simple structure, reliable operation and a high degree of standardization.

For more complex hydraulic systems with large flow rates and high pressures, the size and weight can be significantly reduced.

Working principle of CA-08A-3C Hydraulic Cylinder Balance Valve Block:


1: The pressure reducing valve block uses the principle of pressure reduction when the oil passes through the gap, so that the outlet oil pressure remains stable and low.

2: The pilot-operated pressure reducing valve is composed of a pilot valve and a main valve. The pressure flows out from the oil inlet of the main valve and then out of the oil outlet.

3: When the oil outlet pressure is lower than the setting pressure of the pilot valve spring, the pilot valve is closed, the pressure in the upper and lower oil chambers of the main valve spool is equal, and it is at the lowest position under the force of the outlet valve spring, and the X opening is the largest. Acts as a stress reliever.

4: When the outlet pressure is higher than the setting pressure of the pilot valve spring, the pilot valve opens and the main valve spool rises. The X opening is the smallest, and the outlet pressure drops, which acts as a pressure reducer.
