ZQ83 Single and Double Action Vises

ZQ83 Single and double action vises are made of high-quality alloy steel carburized, working surface hardness HRC58-62. They are widely used in machining centers, CNC milling machines, boring machines, grinders and other machine tools.

Send Inquiry

Product Description

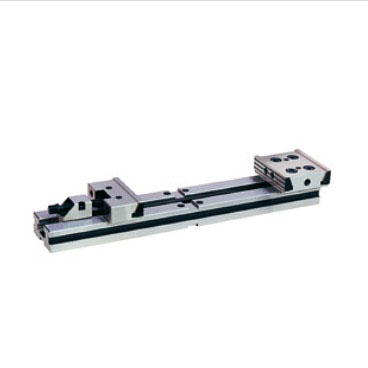

ZQ83 Single and double action vises

1. Made of high-quality alloy steel carburized, working surface hardness HRC58-62

2. Parallelism 0.005mm/100mm, verticality 0.005mm

3. Can be used as single vise or double vise, with extra-long opening when used as single vise

4. Widely used in machining centers, CNC milling machines, boring machines, grinders and other machine tools.

GET A QUOTATION NOW

Order	S1 mm	Order	S2 mm	B mm	H mm	L mm
ZQ83100	290	ZQ83100 ( I )	2X90	100	30	460
ZQ83125	320	ZQ83125 ( I )	2X100	125	40	520
ZQ83150	360	ZQ83150 ( I )	2X110	150	50	580
ZQ83150A	460	ZQ83150A ( I )	2X160	150	50	680
ZQ83175	400	ZQ83175 ( I )	2X120	175	60	666
ZQ83175A	500	ZQ83175A ( I )	2X170	175	60	766
ZQ83175B	600	ZQ83175B ( I )	2X220	175	60	866
ZQ83175C	700	ZQ83175C ( I )	2X270	175	60	966
ZQ83200	500	ZQ83200 ( I )	2X150	200	65	805
ZQ83200A	600	ZQ83200A ( I )	2X200	200	65	905
ZQ83200B	700	ZQ83200B ( I )	2X250	200	65	1105
ZQ83200C	800	ZQ83200C ( I )	2X300	200	65	1105
ZQ83200D	900	ZQ83200D ( I )	2X350	200	65	1205
