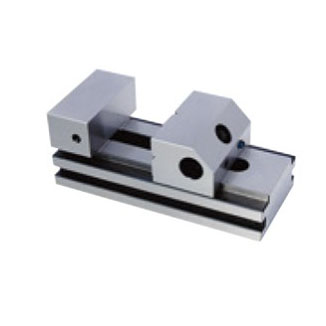

Model 28600 High Precision Tool Vises

China Model 28600 High Precision Tool Vises
1: The material is made of high-quality alloy steel and carburized to make the working surface hardness reach HRC58-62. The extremely stable wear resistance ensures that the accuracy can be effectively guaranteed during use.
2: High-precision grinding machine processing technology, dust-free assembly environment, the parallelism between the two sides and the plane on the guide rail and the ground is <0.002mm

Send Inquiry

Product Description

China Model 28600 High Precision Tool Vises

1: The material is made of high-quality alloy steel and carburized to make the working surface hardness reach HRC58-62. The extremely stable wear resistance ensures that the accuracy can be effectively guaranteed during use.

2: High-precision grinding machine processing technology, dust-free assembly environment, the parallelism between the two sides and the plane on the guide rail and the ground is <0.002mm

Product models and specifications

Order No	Jaw Width (mm)	Jaw Depth( mm)	MaxOpenig(mm)	OverLength mm)
28600 110	34	15	25	75
28600 120	45	20	50	110
28600 130	70	30	80	160
28600 140	90	40	120	210
28600 150	120	40	150	280
