What is a CNC machine vise?

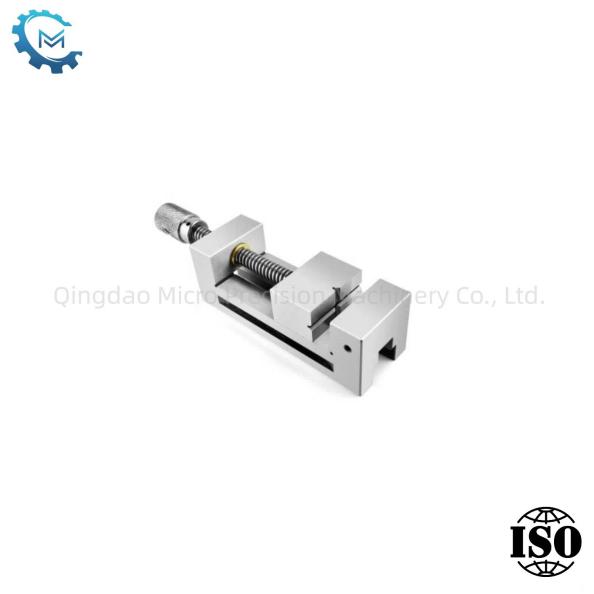

CNC machine vise is an industrial clamp that we often use in machining. It is usually installed on milling machines and drilling machines. A vise is a commonly used machine tool accessory, mainly used to clamp and fix workpieces on CNC machine tools or ordinary machine tools for machining operations.

1. Working principle of vise

A vise is a machine tool accessory used to clamp workpieces when working with machine tools. Its working principle is to use a wrench to turn the lead screw, and the lead screw nut drives the movable clamp body to move, thereby tightening and loosening the workpiece. The assembly structure of a machine vise is a cast iron combination of detachable threaded connections and pin connections; the linear motion of the movable clamp body is converted from spiral motion; the working surface is the friction surface of the spiral pair, guide pair, and the shaft and hole with clearance fit.

2.Characteristics of vise

(1) Ability to quickly and conveniently equip new products for production, thus shortening the production preparation cycle and reducing production costs

(2) Ability to clamp a group of workpieces with similar characteristics with precision vises

(3) Ability to apply high-precision machine tool fixtures for fine processing

(4) Ability to apply new machine tool fixtures for various modern manufacturing techniques

3. Precautions for clamping workpieces in vises

(1) The machined surface of the workpiece must be higher than the jaws, otherwise the workpiece must be raised with parallel shims.

(2) In order to clamp firmly and prevent the workpiece from loosening during planing, a relatively smooth surface must be pressed against the shims and jaws. To make the workpiece close to the shims, it should be clamped while tapping the sub-surface of the workpiece with a hammer. The smooth surface should be tapped with a copper rod to prevent scratching the smooth surface.

(3) In order to prevent the jaws from being damaged and to maintain the machined surface, a copper sheet should be placed at the jaws when clamping the workpiece. Move the shims by hand to check the degree of clamping. If there is any looseness, it means that the workpiece and the shims are not well fitted. The flat-nose pliers should be loosened and re-clamped.

(4) Insufficient rigidity: The workpiece needs to be supported firmly to prevent the clamping force from deforming the workpiece.

Conclusion

In short, the vise is a machine tool accessory used to clamp the workpiece. It has the characteristics of simple and compact structure and strong clamping force. It is very easy to use for us. It can not only meet our diverse processing needs, but also effectively improve production efficiency and processing quality.
